Clustering with Annealing

Clustering with Annealing#

This tutorial will cover clustering using Openjij as an example for an application of annealing.

Overview of Clustering#

Assuming \(n\) is given externally, we divide the given data into \(n\) clusters. Let us consider 2 clusters in this case.

Clustering Hamiltonian#

Clustering can be done by minimizing the following Hamiltonian:

\[ H = - \sum_{i, j} \frac{1}{2}d_{i,j} (1 - \sigma _i \sigma_j) \]

\(i, j\) is the sample number, \(d_{i,j}\) is the distance between the two samples, and \(\sigma_i=\{-1,1\}\) is a spin variable that indicates which of the two clusters it belongs to. Each term of this Hamiltonian sum is:

  • 0 when \(\sigma_i = \sigma_j \)

  • \(d_{i,j}\) when \(\sigma_i \neq \sigma_j \)

With the negative on the right-hand side of the Hamiltonian, the entire Hamiltonian comes down to the question to choose the pair of \(\{\sigma _1, \sigma _2 \ldots \}\) that maximizes the distance between samples belonging to different classes.

Formulation with JijModeling#

Let us formulate the above Hamiltonian using JijModeling. We define the necessary variables below. In JijModeling, we cannot directly use spin variables \(\sigma_i\), so we rewrite them using binary variables \(x_i\) via the relation \(\sigma_i = 2x_i - 1\).

import jijmodeling as jm

problem = jm.Problem("Clustering")

d = problem.Float("d", ndim=2)
N = problem.DependentVar("N", d.len_at(0))
x = problem.BinaryVar("x", shape=(N, ))

def sigma(i):
    return 2 * x[i] - 1

Here, d is defined as the distance matrix between samples, N as the number of samples (automatically determined from the dimension of d), and x as a binary variable. The correspondence with spin variables \(\sigma_i = 2x_i - 1\) is defined as the sigma function.

Hamiltonian#

Let us formulate the Hamiltonian above.

problem += -jm.sum(
    jm.product(N, N),
    lambda i, j: d[i, j] * (1 - (sigma(i) * sigma(j))),
)

Let us display the formulated mathematical model in the Jupyter Notebook.

problem
\[\begin{split}\begin{array}{rl} \text{Problem}\colon &\text{Clustering}\\\displaystyle \min &\displaystyle -\sum _{i=0}^{N-1}{\sum _{j=0}^{N-1}{{d}_{i,j}\cdot \left(1-\left(2\cdot {x}_{i}-1\right)\cdot \left(2\cdot {x}_{j}-1\right)\right)}}\\&\\\text{where}&\\&\text{Decision Variables:}\\&\qquad \begin{alignedat}{2}x&\in \mathop{\mathrm{Array}}\left[N;\left\{0, 1\right\}\right]&\quad &1\text{-dim binary variable}\\\end{alignedat}\\&\\&\text{Placeholders:}\\&\qquad \begin{alignedat}{2}d&\in \mathop{\mathrm{Array}}\left[(-)\times (-);\mathbb{R}\right]&\quad &2\text{-dimensional array of placeholders with elements in }\mathbb{R}\\\end{alignedat}\\&\\&\text{Dependent Variables:}\\&\qquad \begin{alignedat}{2}N&=\mathop{\mathtt{len\_{}at}}\left(d,0\right)&\quad &\in \mathbb{N}\\\end{alignedat}\end{array} \end{split}\]

Creating an Instance#

Let us artificially generate linearly separable data on a 2D plane.

import numpy as np
import pandas as pd

from scipy.spatial import distance_matrix

data = []
label = []
for i in range(100):
    # Generate random numbers in [0, 1]
    p = np.random.uniform(0, 1)
    # Class 1 when a condition is satisfied, -1 when it is not
    cls = 1 if p > 0.5 else -1
    # Create random numbers that follow a normal distribution centered at a certain coordinate
    data.append(np.random.normal(0, 0.5, 2) + np.array([cls, cls]))
    label.append(cls)
# Format as a DataFrame
df1 = pd.DataFrame(data, columns=["x", "y"], index=range(len(data)))
df1["label"] = label
instance_data = {'d': distance_matrix(df1, df1)}

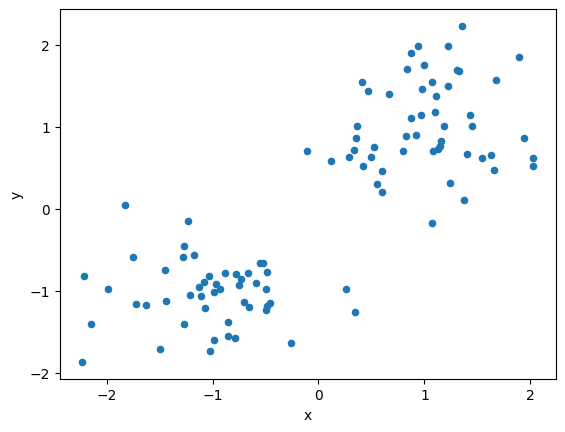

Let us visualize the generated data.

# Visualize dataset
df1.plot(kind='scatter', x="x", y="y")

<Axes: xlabel='x', ylabel='y'>
../../_images/83632a57a744388162f3036419a150c0ed742eb19934766b7d76eda0cecb1a29.png

Running Optimization with OpenJij#

Let us solve the optimization problem using OpenJij’s simulated annealing.

from ommx_openjij_adapter import OMMXOpenJijSAAdapter

instance = problem.eval(instance_data)

adapter = OMMXOpenJijSAAdapter(instance)
best_sample = adapter.sample(
    instance, num_reads=100
).best_feasible_unrelaxed

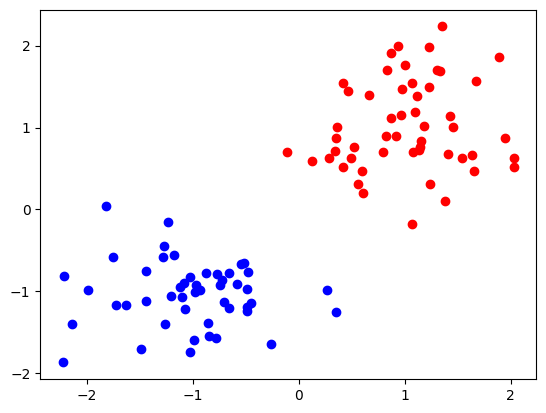

Visualizing the Solution#

Let us visualize the obtained solution.

import matplotlib.pyplot as plt

df = best_sample.decision_variables_df
x_indices = set(row["subscripts"][0] for _, row in df.iterrows() if row["name"] == "x" and row["value"] > 0.5)
for idx in range(len(instance_data['d'])):
    color = "b" if idx in x_indices else "r"
    plt.scatter(df1.loc[idx]["x"], df1.loc[idx]["y"], color=color)
plt.xlabel('x')
plt.ylabel('y')

Text(0, 0.5, 'y')
../../_images/74c962d0d2dc4925f84fcd0124617280cec30a41da23f88d24944bfa3a290298.png

We can see that the data is classified into two classes: red and blue.
